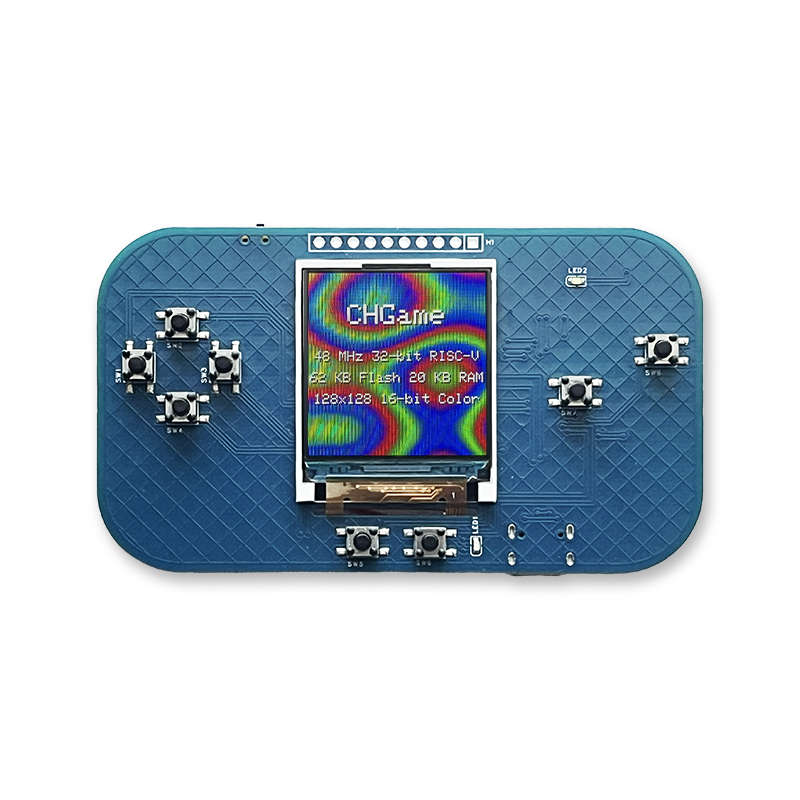

CHGame Front.png

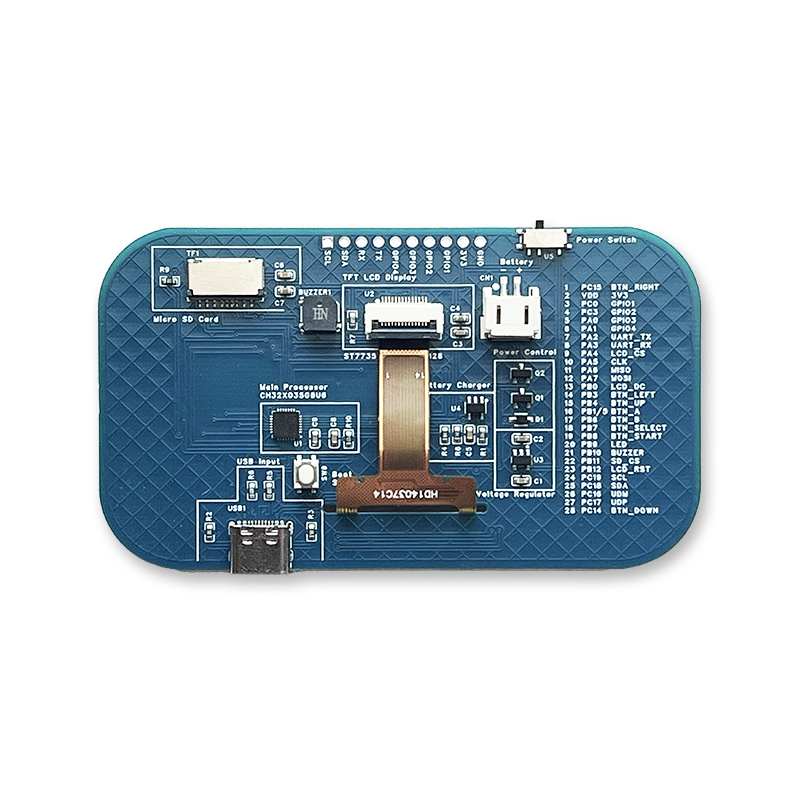

CHGame Back.png
CHGame Front.png
CHGame Back.png

CHGame Rev0

$39.00

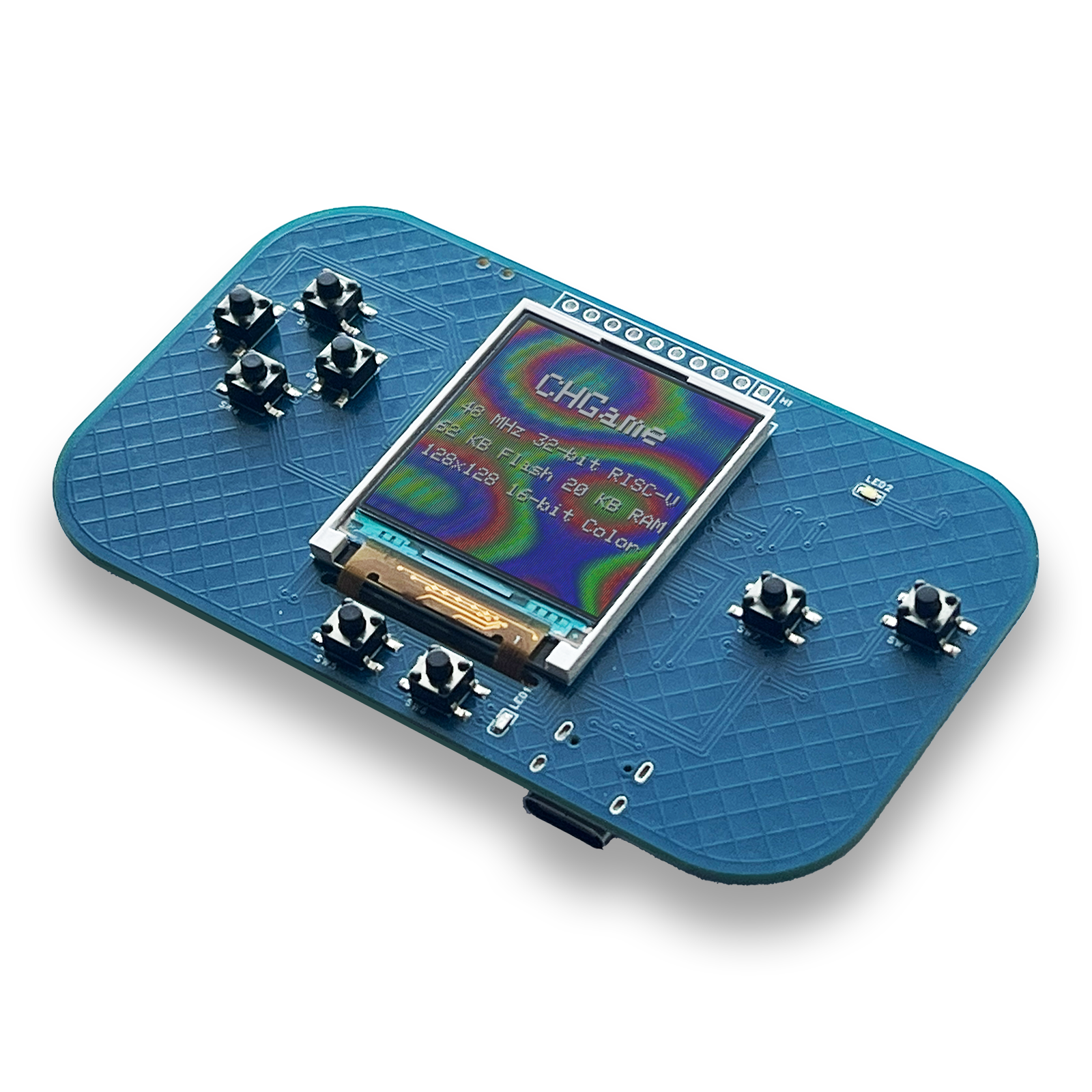

Lowest Cost Game System: The Developer’s Kit
48Mhz 32-bit RISC-V — 64KB Flash — 20KB RAM
1.44” Full Color LCD — 16-bit 128×128 Pixels

Arduino-Compatible (Drivers Not Required)
Battery Included

Lowest Cost Game System: The Developer’s Kit
48Mhz 32-bit RISC-V — 64KB Flash — 20KB RAM
1.44” Full Color LCD — 16-bit 128×128 Pixels

Arduino-Compatible (Drivers Not Required)
Battery Included

A developer’s kit for a new open source game platform.

Don’t call it Arduboy Color!

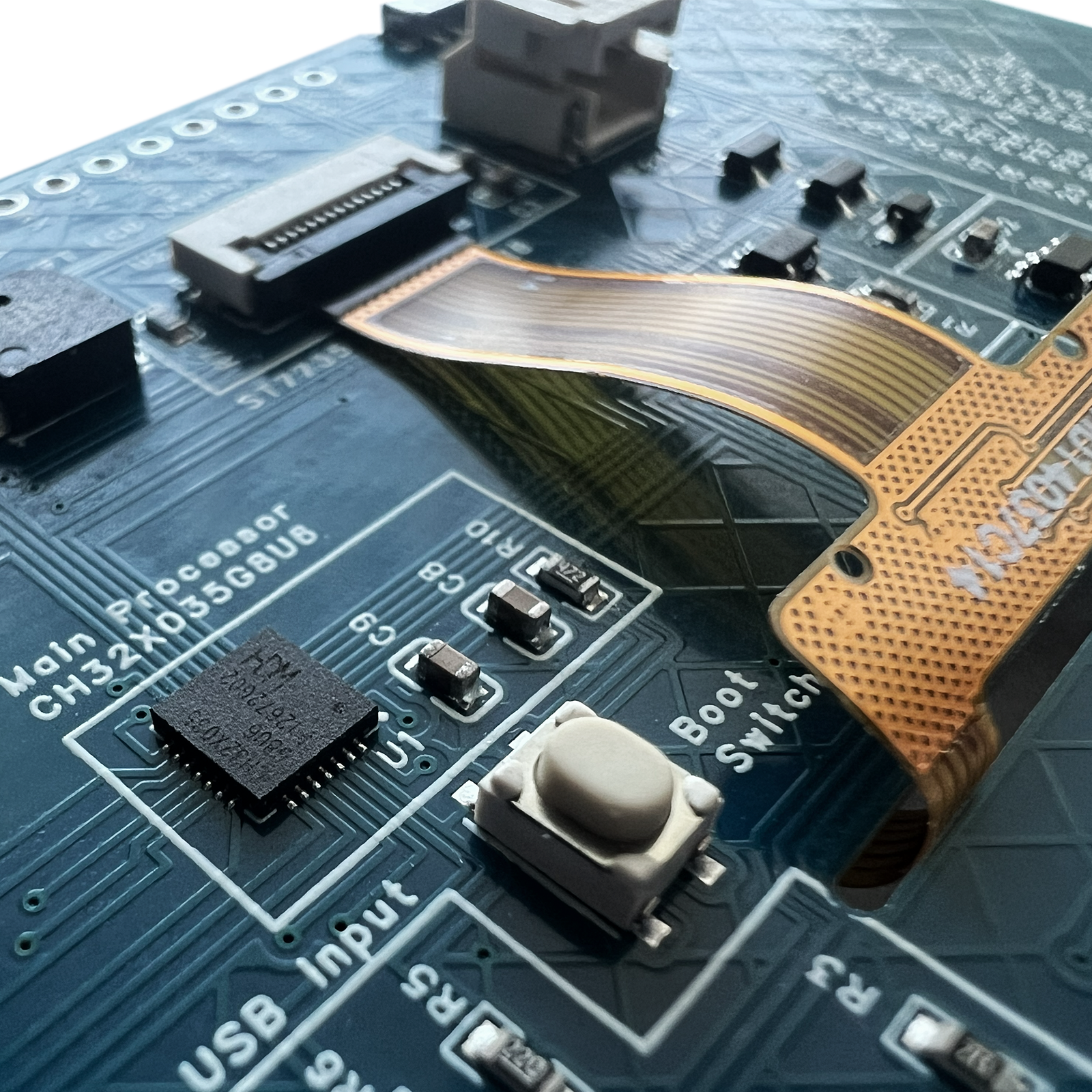

This raw circuit board is the quickest path to development. With components clearly labeled along with their functional groups, as well as the complete GPIO breakout is available on the board silkscreen.

CHGame is much a hacking tool as it is a game development platform, with a complete set of GPIO, I2C and UART available on the expansion port.

The final design will include a complete case, but with a new design aesthetic to the Arduboy. Stay wired for future revisions — including a 3d printed prototype case.

At least not yet…

The CHGame System is an attempt to push the boundaries of the lowest cost open-source game system.

Specifications:

  • CH32X035G8U6 — 48Mhz 32-bit RISC-V Microprocessor w/ DMA & PIO

  • ST7735 1.44” Color LCD — 16-bit 128×128px

  • Micro-SD Card Slot

  • 8 Tactile Buttons

  • User LED

  • Piezo Speaker

  • Expansion Port

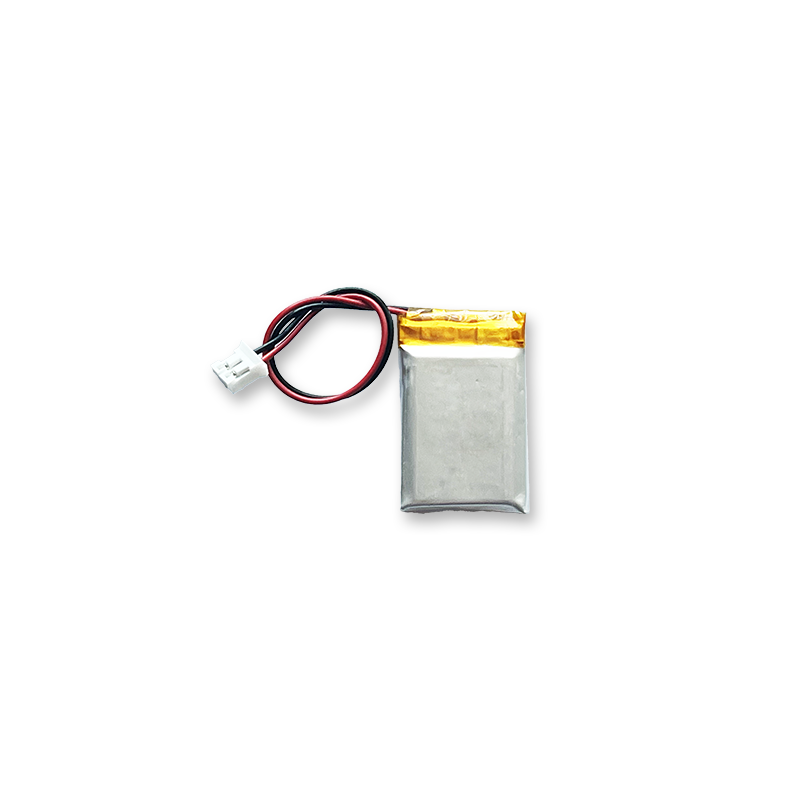

  • 200mAh Lithium Polymer Battery Included

These first units are priced to help fund the development of the platform. The hardware is explicitly designed to become dramatically cheaper at scale. Every early purchase helps justify a larger next batch with a lower price.

The goal is simple: make a genuinely capable game platform that almost anyone can afford.

Resources

CHGame Arduino Plugin — USB Serial bootloader allows for programming and device communication without the need to install drivers. (Drivers required for bootloader development, which can be performed via USB)

CHGfx — Highly performant graphics library capable of 60fps at full color compatible with Adafruit GFX library.

CH32Doom — Faithful interpretation of the classic E1M1 as a feature complete BSP rasterizer that pushes the hardware to the limits.

File Browser — SD card browser, text browser, and gif viewer for CHGame.

Community Color Category — Share your games, ask questions and get support in the newest category on the Arduboy Community!

CHGame Website — Landing page for quick reference information and details about the platform.
