Experience virtually at DigitalCandle.ai

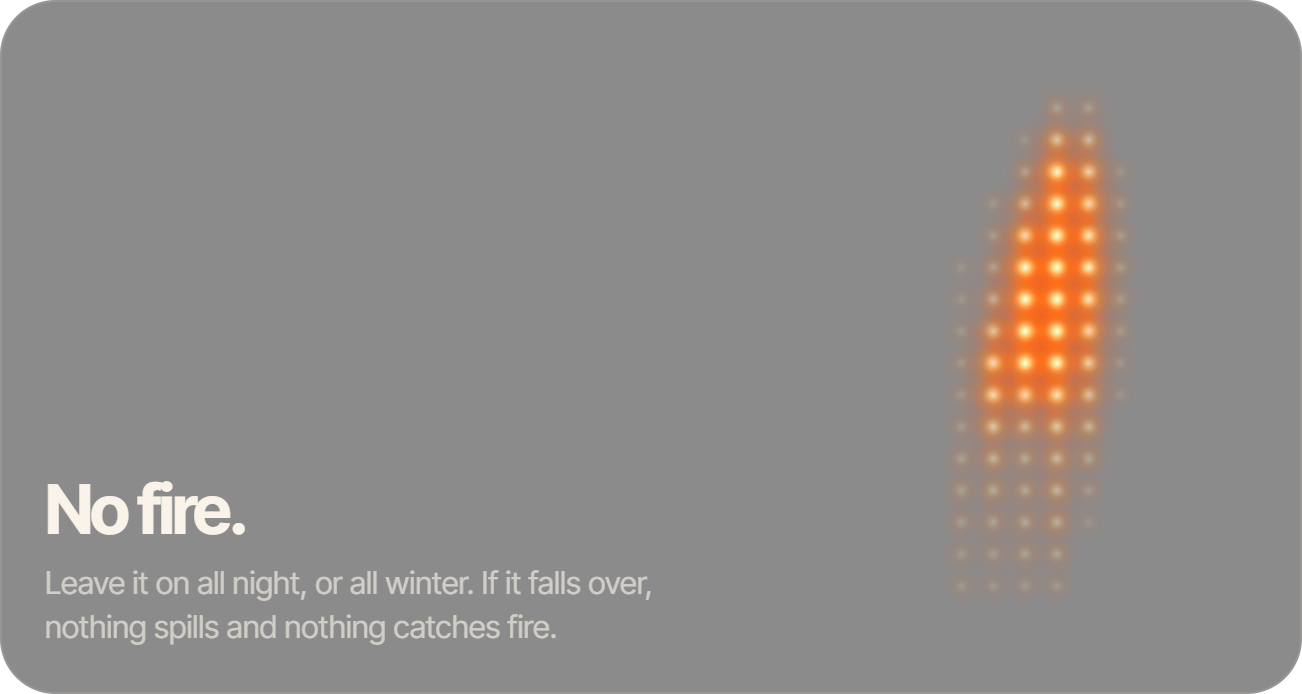

The candle, danger removed.
A perfectly good computer.

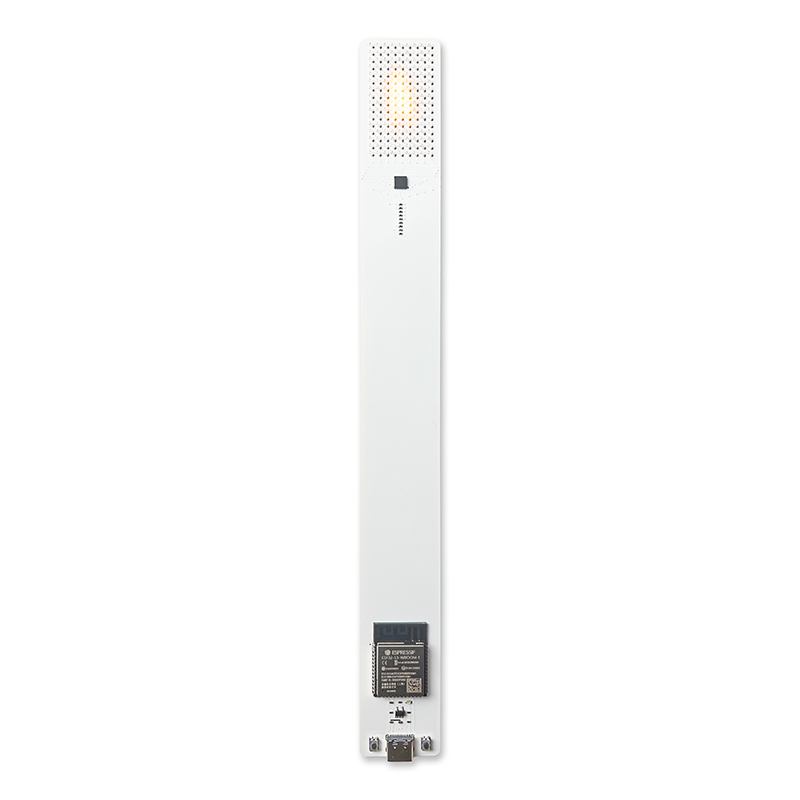

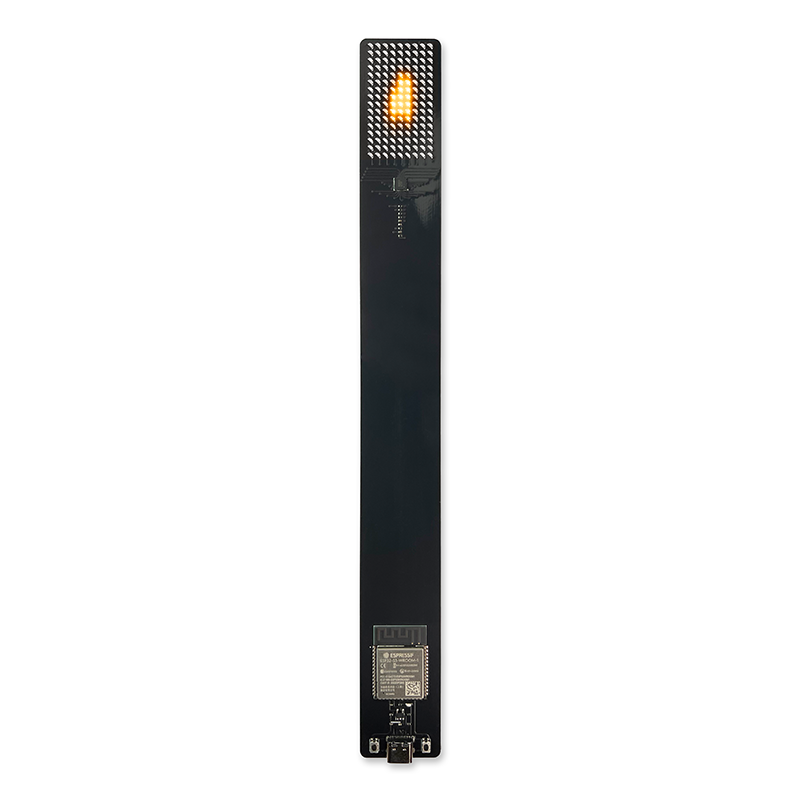

Under the flame sits an ESP32-S3 with Wi-Fi and Bluetooth LE, driving 144 lights you can address one at a time. Create unique applications and explore edge computing with open source tools optimized for agentic development.
It thinks.
A tiny neural network was trained on recorded candle footage to describe its flame behavior with eight variables.
Light
144 amber LEDs, 9 × 16, status light
Model

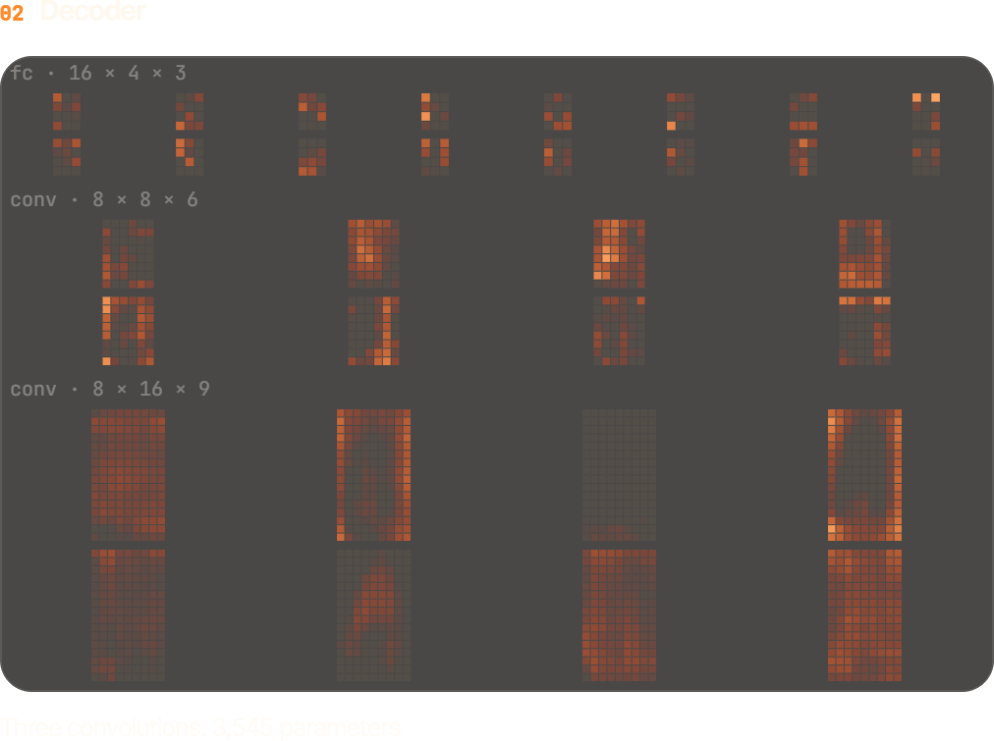

8-dimensional latent, convolutional decoder, 3,545 parameters, 30 fps
ESP32-S3-WROOM-1 (N4R2)
Microcontroller
Driver
IS31FL3731, 8-bit PWM, CIE lightness correction
USB-C, 5 V (Dock included)
Power
Size
10 × 1 in (251.5 × 27.9 mm)
Development
ESP-IDF, Github
